E36 "PRO" Self Centering Chassis Short Shifter

OVERVIEW

Introducing our "PRO" self-centering shifter designed for your E36! This version features an aluminum rod, while if you're keen on a carbon fiber rod, take a look at our other listing.  Renowned for its exceptional quality, this self-centering shifter stands out in the market. At its core lies a meticulously tuned Torsion Spring, delivering the ideal amount of self-centering force. Crafted from 7075 aluminum, the Garagistic Chassis Mounted Short Shifter is THE MOST CUSTOMIZABLE SELF-CENTERING SHIFTER AVAILABLE, offering an array of stalk lengths and shift knob choices. Tailor your shifter precisely to your preferences with the Garagistic "Pro" Self Centering Solid Mounted Short Shifter! Now you can see exactly how our shifter will sit in your E36 interior.

In the E36, the shifter base sits below the shifter console opening and can be hidden under a Garagistic shift boot for a sleeper look.

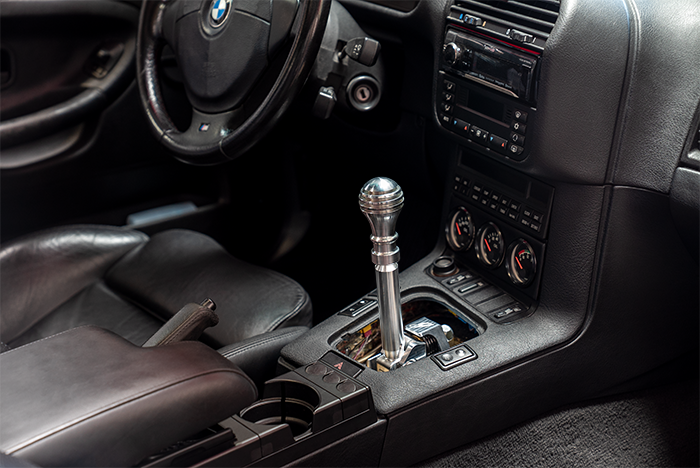

Photo Model:
The E36 pictured is a 1998 US Spec E36 M3. Installed with our Pro Shifter is a Garagistic billet extended selector joint (included for free!) and our billet E36 M3/328i DSSR.

Installation notes: Please keep in mind that all shifters will come with an extended selector joint. The reason for this is that in some cars, the shifter has a slight lean toward back of the car (because the self-centering mechanism takes some room in the front of the shifter, the whole thing sits a little further back than original placement of the shifter. The extended selector joint is not only an upgrade but also moves the shifter a little more centered. In an E36, the extended selector joint is enough to recenter the shifter.

Our shifter also comes with a brand-new molded gasket to seal your interior (some shifters don't include this!).

Installation times:

E36 - 45mins (doesn't require dropping of exhaust)

All this without the need to cut your center console! We thought of everything in the design of this shifter to make sure it's truly the ultimate shifter on the market!

Features

Features of Garagistic Self-centering shifter include

• Shifter lean adjustment (side-to-side lean): Our shifter will make up for the very common 5th gear lean found in some E36 and E46 cars (if you didn't replace your shifter detent pins). Simply loosen a screw in the front, move the shifter to the center (or wherever you want), tighten and you're done.
• OEM Shift knob Compatibility: Another feature that is exclusive to the Garagistic PRO self-centering shifter. We offer an OEM-style shaft that allows the use of OEM shift knobs for that stealth look.
• The most customizable shifter on the market: With over 600 configurations, you can customize the height, knob type, shift knob, and finish of your shifter to match the aesthetic of your interior as you intended it to be.
• Front-to-back fine adjustment: You can further position the shifter where you want forward and back which will fine-tune front the rear shifter lean.
• Serviceability: Unlike all other shifters on the market, you don't need to remove your center console to lubricate. Simply remove the shift knob and spray WD40. We made a "tunnel" system in the shifter that allows lubrication of all bearings and pivot points on the way down.
• Ultra Smooth Shifting Feel: Because our shifter is the only one in the world for BMWs that have bearings at all pivot points, you do not need to service the shifter as others. These bearings mean there is never a possibility of metal-on-metal contact. Other shifters rely on bronze or delrin which can squeak or fail to cause metal-on-metal friction. This can cause a lot of resistance to shifting. Our shifters require less servicing and offer a lasting buttery smooth operation.
• Lifetime Warranty: Similar shifters only offer a 1-year warranty at best. We are so sure of this product, we offer a lifetime warranty just like we do with everything we make in-house.

Installation

Installation is a breeze thanks to the 3 existing holes in the chassis - simply bolt it up and you're good to go. Also fits older cars like E30 and E36 (just drill out 3 holes in the square stampings in your trans tunnel!)

Please note: As with all solid shifters, they must be used in conjunction with upgraded poly or solid transmission bushings and motor mounts.

We highly recommend pairing your shifter with a Garagistic DSSR to provide the most direct shifting experience possible. We have over 80 configurations of DSSRs, so it is crucial to include the last 7 digits of your VIN# for us to reference and assist us in determining which DSSR is appropriate for your application if you don't know which one is right for you.

Self-Centering "PRO" Shifter SPECS

• Adjustable height and throw! (ONLY SHIFTER ON THE MARKET WITH THIS!)
• Shifter lean adjustment: Fixes common 5th gear lean because of detent pins
• Front-to-back fine adjustment: To customize front to back angle of your shifter
• Feature: Precision spherical bearing pivot point in 2 locations (ONLY SHIFTER ON MARKET WITH THIS!)
• Material: Solid billet aluminum construction
• Gasket - Included with every shifter so the elements don't get inside!
• Install: No permanent modifications are required for installation!
• Shifter Rod Options: Multiple shift stalk heights available (like OEM, Medium, Tall)
• Available with OEM style slot rod for compatibility with BMW OEM shift knobs (select OEM height option)
• Knob Options: Multiple shift knobs available (Delrin, Aluminum, Soft, Standard, Vintage, Tall)
• Emblem: Shift knobs available with recess will come with a Garagistic 5-speed shift pattern emblem. 4-speed, 6-speed, and G logo emblems are sold separately.

FITMENT

Will this shifter fit my car?

• Fits: E30, E36, E39, E46, E60 or E63
• AR Mode: Get a preview of what the shifter will look like in your car! Please check using our AR model to see how the shifter will fit in your vehicle.

Which size rod should I get for my car?

• Tall Rod
• Longer throw, less effort (less notchy), places the shift knob in perfect height with a Hydro E-Brake
• Short Rod
• Shorter throw, more effort (more notchy)
• Medium Rod
• A perfect middle ground, our most popular shifter rod height.
• OEM Option
• Slightly taller than the short rod, this option allows you to retain a factory BMW-style shift knob for the ultimate stealth look
• Overview: In general, the longer the rod the longer the shift throw will be and the less notchy it will feel while the shorter rod produces a shorter shift throw and a more notchy feel.
• It is important to note that due to the varying heights of center consoles in different chassis, certain size rods may be too small/large for you.
• For example, the E30 center console is shorter than the E36 center console so a short height shifter rod will be too short in an E36.
• For those who are unsure, we recommend going with the Medium or Tall rod option for a more street-friendly shifting experience. Our self-centering shifts are SHORT!

Carbon Fiber rods are available. Sold separately and can be found here: Carbon Fiber Shifter rods or in this listing as a combo.

Some shifters will also have a slight tilt once installed, due to the tilt of the transmission. This can be adjusted by using the 5th gear tilt screw.

Please include your vehicle's Year and Model in the notes on checkout!
